ADMTECK

ADM800GLS,for testing common rail injectors and common rail pumps, also can test machenical fuel pumps, measuring with cups, LCD Display

Specifiions:

Power: 11Kw,15Kw,18.5Kw,22Kw etc
Rated Voltage: 220V/380V/415V
Rated Voltage: 50/60HZ
Cylinders: 6 / 12
Speed Range: 0—4000rpm

Color: green blue yellow or on request
Weight: 1080kgs
Temperature Control Range: 42℃ ,Accuracy:±2℃

Return Volume Measurement Range: 0---400L/H
Backflow pressure control range: 0—3 bar
Feed Volume Measurement Range: 0----45L/H
Max pressure: 2000 bar

Main Functions:

For testing and calibrating:

1. The testing database could be updated
2. With industrial computer, more stable and reliable

3. Mechanical in-line pumps and distributor pumps
4. Check and calibrate automatically and give out the testing report
5. Test BOSCH, DENSO, DELPHI, SIMENS etc brands Injectors

6. Can set common rail injector’s injection status, and measuring the oil quantity.

7. Proceed high pressure washing towards the common rail injector

8. Custom setting the characteristics of rail pressure, pulse width and oil measuring time

Technical Specifiion:

Competitive Advantage:

• High Quality
• Reasonable Price
• Good after Service
• More Than 10 Years Experience
• Power: Electronic
• Usage: Auto Testing Machine

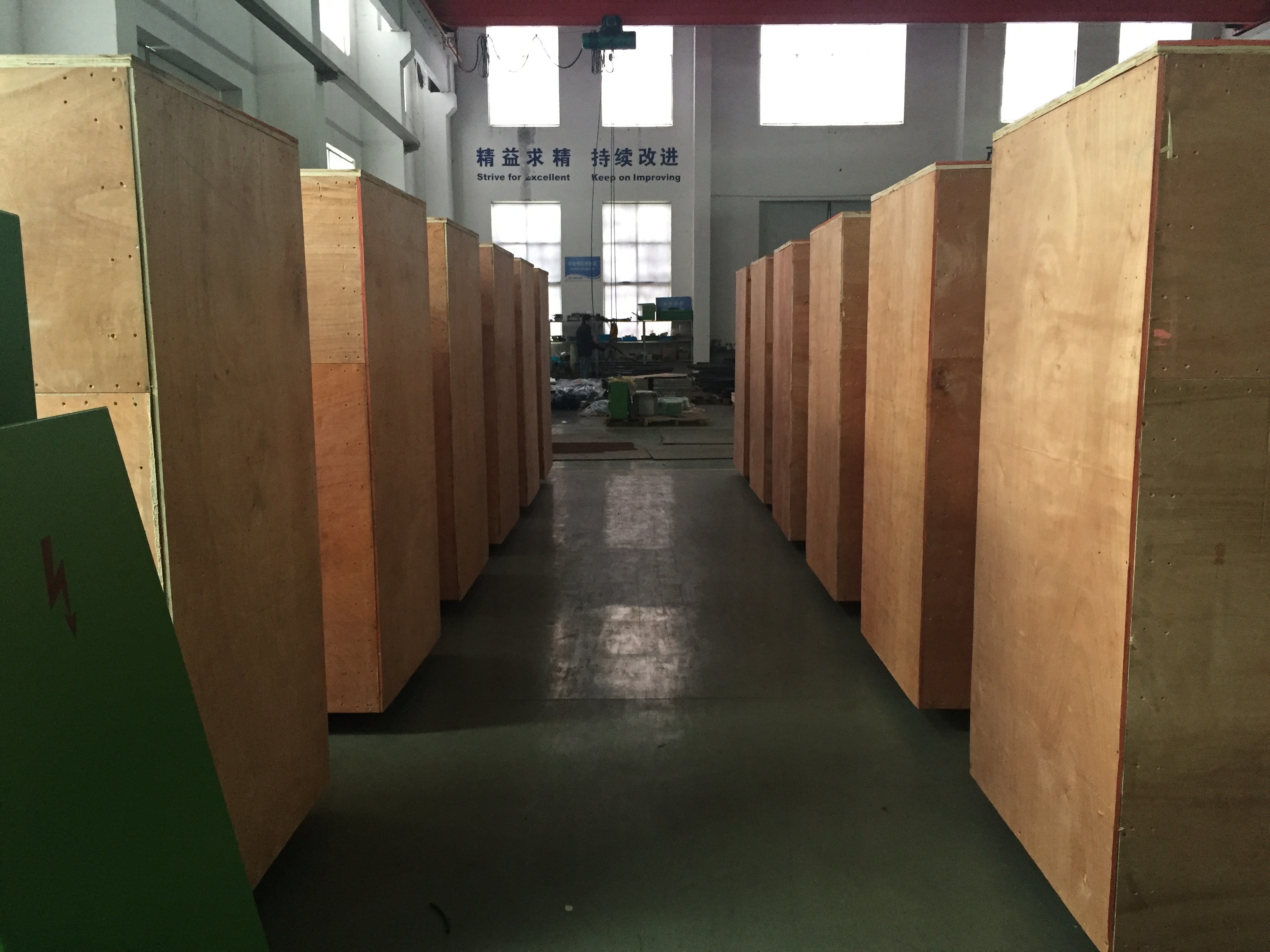

Factory Pictures

Our company have a history over decades of years, owning a skilled and inovative team with advanced knowledge and experience. Our company have got the quality certifie of the ISO9000 and TS16949 system and manage the company as required.

Those ensure the high quality of our products and enable us enjoy a high reputation from our customers. We are authorized to be the OEM producer of many famous manufacturers. Now our products are exported to lots of countries in the world, such as Mid-east, Europe, America, South America and Southeast Asia, etc. In some area, our products even cover over 50% of the market share.

We know that it is the quality and the service which decide our position in the world market. We will spare no effect to meet the request of our customers and provide you the best products with best service and best price.

If you have any question about the products or any problem about the technology, no matter whether you are going to purchasing the Goods, please don't hesitate to contact us. We will be honored to do something for you.
